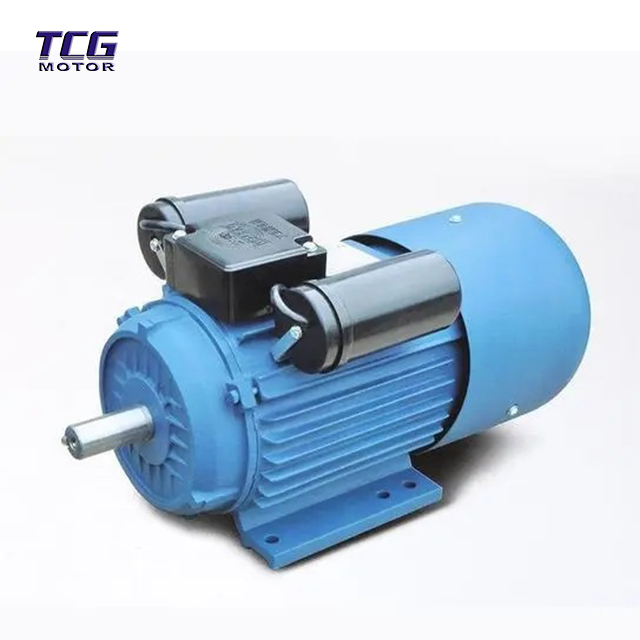

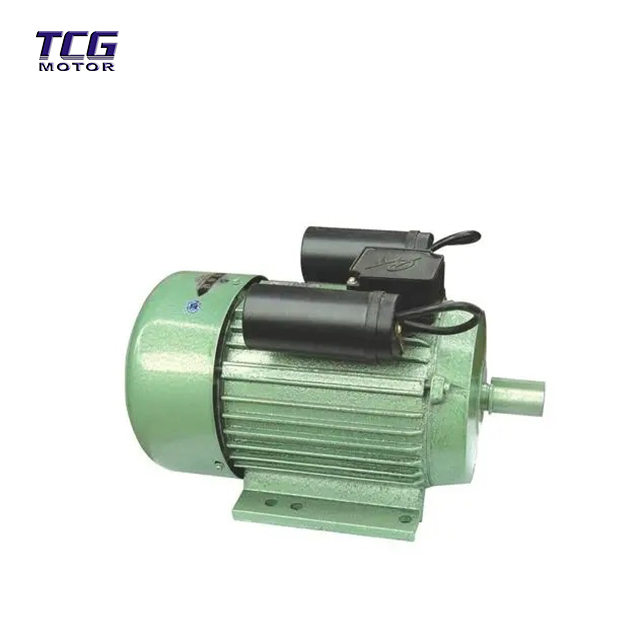

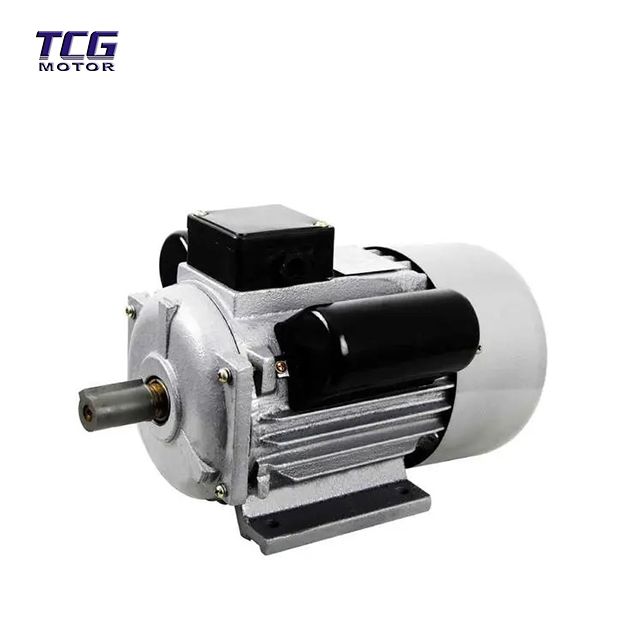

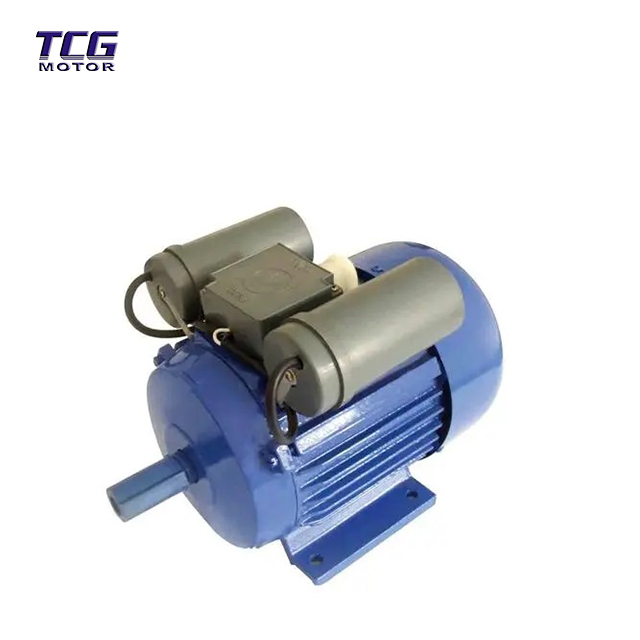

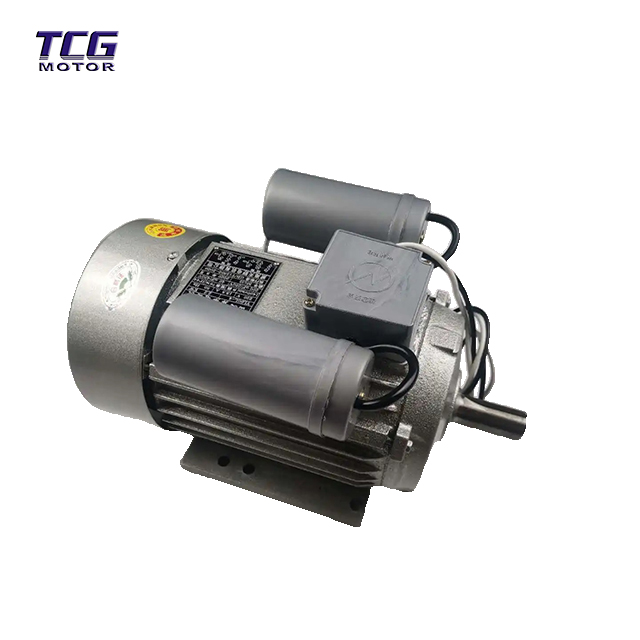

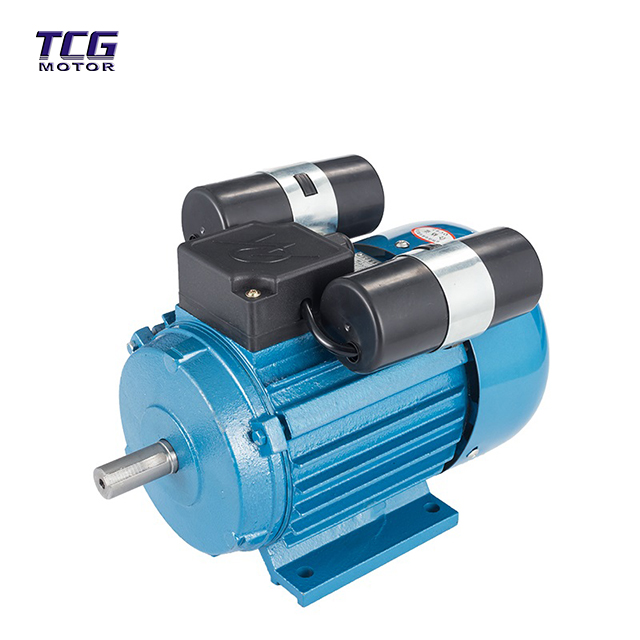

Double capacitor motor

Product Application Introduction:

Dual capacitor motors are widely used in various fields, including household appliances, industrial equipment, transportation, and medical equipment. ‌







1.Household Electric Appliances



Dual capacitor motors are widely used in household appliances such as electric fans, washing machines, coffee machines, etc. These devices typically have low power and require precise control of speed and starting current. Dual capacitor motors have low starting current, high efficiency, and long lifespan, which can meet these requirements.





2. In industrial equipment, dual capacitor motors are commonly used to drive compressors, fans, pumps, and other equipment. These devices require stable rotational speed and high starting torque, and dual capacitor motors can provide good starting performance and operating efficiency.







3. Dual capacitor motors can also be used for small electric vehicles, with small size and adjustable power, suitable for use in small transportation vehicles. This application scenario requires motors to have a high energy efficiency ratio and long lifespan.







4. In medical equipment, dual capacitor motors are used to drive devices that require precise control, such as certain precision medical instruments. These devices require high stability and efficiency of the motor, and dual capacitor motors can provide stable performance and a longer service life.





























Feature:

The main characteristics of dual capacitor motors include the following aspects:



1.Good starting performance: The dual capacitor motor can generate a large starting torque by utilizing the energy of two capacitors during starting, thus being able to withstand a larger load at the moment of starting



2.Stable operation: The capacitors of the dual capacitor motor can compensate for the circuit during operation, effectively reducing the fluctuation of the motor load and making the motor run more smoothly



3.High efficiency: During operation, the dual capacitor motor can improve the power factor and operating efficiency of the motor, and reduce energy consumption by adjusting the use of capacitors



4.Long lifespan: The structure of dual capacitor motors is simpler than traditional motors, and the capacitor materials used are more high-end, resulting in a longer lifespan



5.Wide applicability: Dual capacitor motors are widely used in various fields that require 6.high-performance motors, including home appliances, industry, and agriculture



The working principle and application fields of dual capacitor motors:



A dual capacitor motor is mainly composed of a stator, rotor, and two capacitors. Its working principle is to use the rotating magnetic field generated by a single-phase power supply to make the rotor rotate. At startup, two capacitors are connected to the circuit simultaneously, providing a larger starting torque. When the motor speed approaches the rated speed, one of the capacitors is disconnected through a centrifugal switch, leaving only one operating capacitor to ensure the efficiency and power factor of the motor during operation

Material:

The materials of a dual capacitor motor mainly include the stator, rotor, and capacitor. ‌



Material of stator and rotor



1.Stator: composed of iron core and coil. Iron cores usually use silicon steel sheets, while coils are made by winding wires



2.Rotor: composed of silicon steel sheets and windings. Silicon steel sheets have good magnetic conductivity and can effectively transfer magnetic field energy



Material of capacitors



The capacitor in a dual capacitor motor is usually composed of two capacitors with positive and negative terminal connections, and is usually installed on the motor casing. These capacitors provide the required high current during motor start-up, helping the motor start smoothly



The overall material of the motor



The core component of modern meat grinder motors is usually aluminum motors, as aluminum motors have higher efficiency and better heat dissipation performance, and can maintain good mechanical performance during long-term use. Although the casing of some meat grinder motors may be made of copper, this does not mean that the entire motor is made of copper, as the performance of the motor is related to the circuit design, not the casing material



Company Services:

We are a techlogy-based factory specializing in the AC/DC Motor production and trade of them.

At present, there are more than 25 years of company history and export experience.We cooperate with many well-known brand companies such as Medias,Bosch..

Professional customized one-stop optical solutions, including technical support, product customization and after-sales service. Through sustainable business operations in many countries and regions around the world, we provide technological innovation, supply chain and manufacturing solutions, and end-market product matching for various industries. Provide professional engineers and business teams, standardized mechanical equipment, controllable product quality, fast production speed, and efficient service feedback.



RFQ:

Q:What material of your motor wire?

A:Our motor wire is 100% copper.

Q:What brand of your motor bear?

A:Our bear brand is NTN or NSK or other brand as you requested.

Q:How long your motor can last?

A:If you use properly, not use in outside, then 5-8 years is no problem.
